The Basics of Rotor Stator Mixers & High Shear Mixing

In the world of industrial mixing, efficiency and quality are paramount. Among the available mixing equipment, rotor stator mixers stand out for their precision and versatility. These mixers excel in high shear mixing applications and are vital in industries like pharmaceuticals, food processing, cosmetics, and chemical manufacturing.

Here, we unpack the workings of rotor stator mixers and their critical role in tackling high shear mixing challenges.

What Is a Rotor Stator Mixer?

To fully grasp their importance, it's essential to understand what a rotor stator mixer is and how it functions. At its core, a rotor stator mixer is a high shear mixing device designed to perform a wide range of tasks, including emulsifying, homogenizing, blending, and dispersing materials.

The system consists of two main components: a rotor and a stator. The rotor is a high-speed rotating element, while the stator remains stationary. Together, they create a shearing action that efficiently mixes materials at a microscopic level, producing a homogeneous mixture with a fine and consistent texture.

The Mechanics of High Shear Rotor Stator Mixers

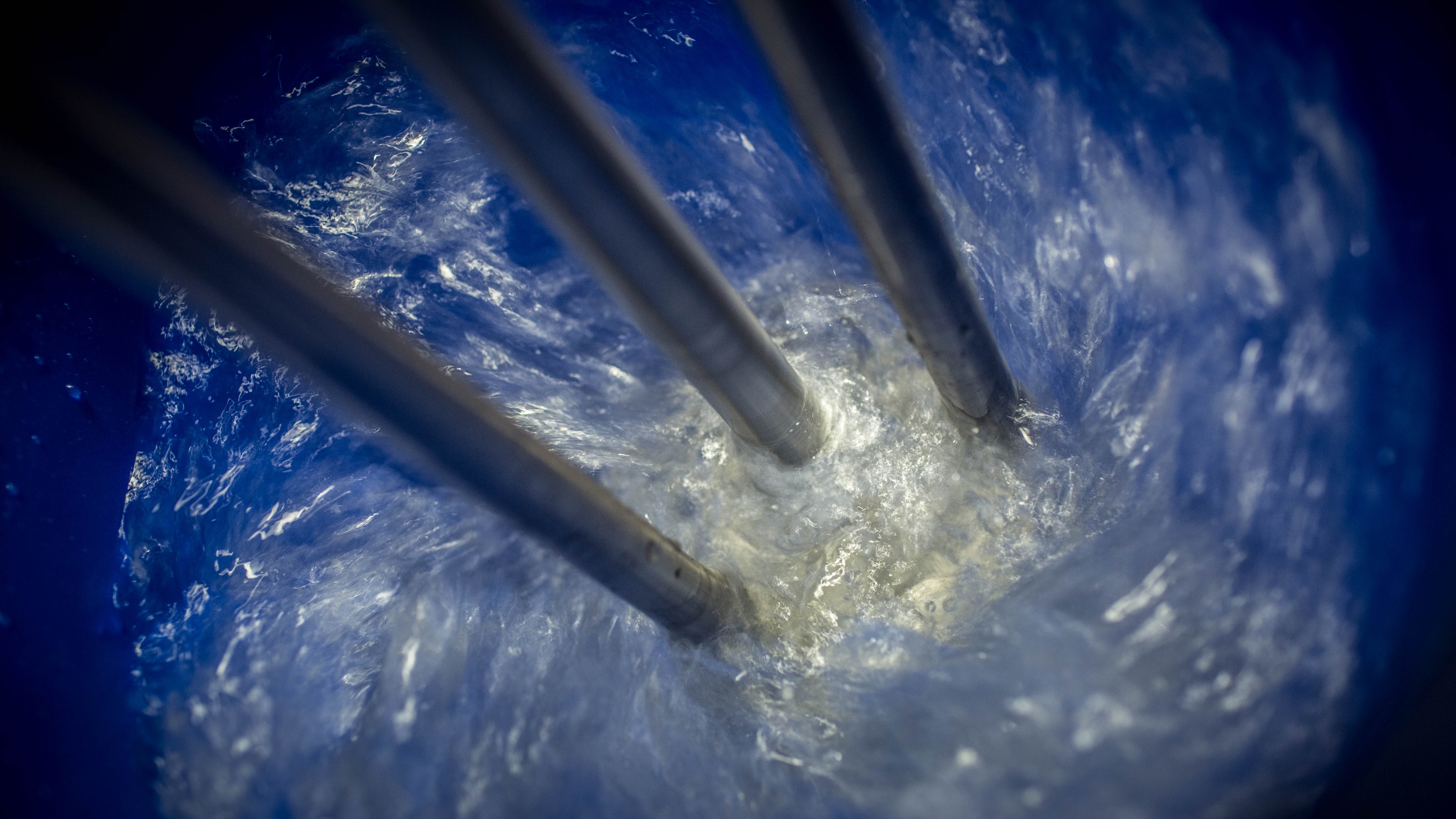

The effectiveness of rotor stator mixers lies in their reliance on shear force, a key factor in achieving rapid and efficient particle size reduction. As the rotor spins at high speeds, it draws materials into the rotor-stator assembly. The materials are then forced through the narrow gap between the rotor and stator, where they are subjected to intense shearing action.

This process breaks down particles and droplets, reducing their size and distributing them evenly throughout the mixture. The result is a stable, uniform emulsion or dispersion with excellent texture and consistency.

Rotor Stator Homogenizer: A Closer Look

Among rotor stator mixers, the homogenizer stands out for its exceptional ability to refine particle sizes, producing consistent and stable formulations. This specialization is particularly valuable in creating smooth emulsions, suspensions, and dispersions. The homogenizing capability of these mixers is particularly valuable in industries where product consistency, stability, and texture are critical, such as in pharmaceuticals and cosmetics.

3 Types of Stators and Their Capabilities

Stators, a critical part of rotor stator mixers, come in different types, each tailored to specific mixing challenges. Understanding the various types of stators used in rotor stator mixers can help optimize mixing performance for specific applications.

Each type of stator is designed to handle different challenges and material properties, enhancing the versatility and efficiency of these mixers. There are three main types:

1. Angle slot stator
2. Emulser stator
3. General purpose stator

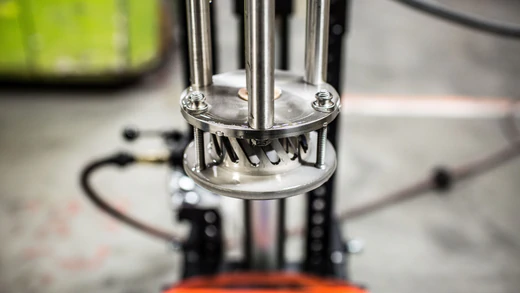

1. Angle Slot Stator

The angle slot stator is known for its effective combination of high shear and adequate flow, making it ideal for handling viscosities up to 10,000 cps. Its angled vertical slots allow the rotor to spin and force the mixture through with significant shearing action, shredding solids and powders to create suspensions and achieve thorough homogenization.

This design excels in processes requiring powerful shear forces and is standard on post mount rotor stators.

2. Emulser Stator

For fine emulsions or suspensions in low-viscosity mixtures, the emulser stator is the preferred choice. Its design incorporates small holes or a fine mesh that creates an ultra-high shear environment, breaking down ingredients to achieve a consistent, fine texture.

This makes it especially effective in applications such as food and cosmetic emulsions where precise droplet size is crucial.

3. General Purpose Stator

The general purpose stator is versatile, performing well across a range of applications. It draws the product from beneath the rotor and forces it through large holes in the stator, which is ideal for breaking down soft solids and promoting a high flow rate.

This type is suitable for applications that need effective mixing without the extreme shearing action of specialized stators.

Applications and Advantages

Rotor stator mixers are celebrated for their efficiency and effectiveness in a variety of mixing tasks. Here are some of the key applications and advantages:

Emulsification

Rotor stator mixers excel at creating stable emulsions with uniform droplet sizes. This capability is essential for products such as creams, sauces, and dressings, where consistency and texture directly impact product quality.

Dispersion

Ensuring even distribution of solid particles within a liquid is crucial for achieving smooth, high-quality outputs. Rotor stator mixers make this possible, making them a top choice for producing inks, paints, and coatings that require precision and uniformity.

Homogenization

The ability to reduce particle sizes to a fine level is vital for producing smooth, consistent mixtures. This is particularly important for pharmaceutical formulations and cosmetic products, where a uniform blend can enhance stability, performance, and user satisfaction.

Achieving Quality & Consistency in Every Mix

Rotor stator mixers, with their high shear capabilities, offer a powerful solution for achieving optimal mixing results across a wide range of industries. Whether you're developing a new product or seeking to improve an existing one, the precision and efficiency of rotor stator mixers can elevate your mixing process to new heights, ensuring quality and consistency in every batch.
